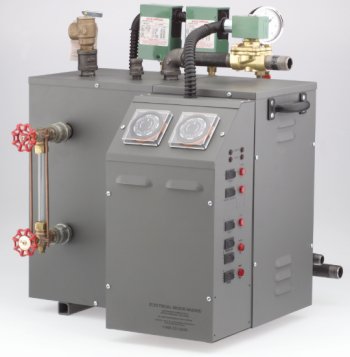

Ideal for large steamrooms, the AmerecSteam Commercial Steam Generator is designed for optimum user enjoyment and ease of use. Standard features make this generator a dream-come-true from a facilities maintenance point of view and reliable long life for owners. The unit is designed for easy on-site maintenance and hands-off, automated operation.

AmerecSteam engineering and technology incorporates several unique features making this unit the ideal commercial steam generator.

  • Features ASME certified low-pressure vessel/National Board Registered
  • UL listed
  • O.D. 21"w x 19"d x 231/2"h (up to 24kW)
  • All steel construction with powder coat finish and stainless steel feet to prevent corrosion
  • Multiple safety features, including:
    • Optional 24-hour/7-day integral clock
    • Sight glass
    • Three-level water sensing system with low water cutoff
    • High pressure cutout on all boilers
  • One or two-room operation Room "over-temperature shut down" turns boiler elements off and blinks indicators to show alarm. Each room controlled individually with optional low-voltage on/off control
  • Two or three wire alarm circuit switching provides for remote monitoring
  • Designed for easy serviceability
  • Optional "Refreshâ„¢" option provides short bursts of steam when desired — simple push button in the steam room provides a 15 to 20 second burst of steam even if the room is at set temperature and not calling for steam
  • Simple service access and control Indicator lights with integral diagnostics
  • Auto-blow down pressurized flush/drain system, on separate clock Alarm circuit incorporates high temperature alerts, panic buttons, etc. for more user safety
  • External control system includes indicator light-to show when bath is on
