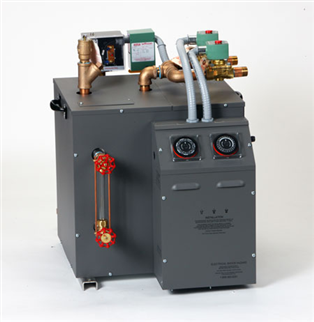

AI Series Steam Boilers
Commercial Steam Bath
Ideal for large steam rooms, the AmerecSteam commercial steam bath boilers are designed for optimum user enjoyment and ease of use. A variety of standard features makes these boilers desirable from a facilities maintenance point of view and delivers reliable service for owners. Each unit is designed for easy on-site maintenance and hands-off, automated operation.
AmerecSteam engineering and technology incorporates several unique features making AmerecSteam boilers the commercial steam generator choice of facilities maintenance engineers.
TECHNICAL

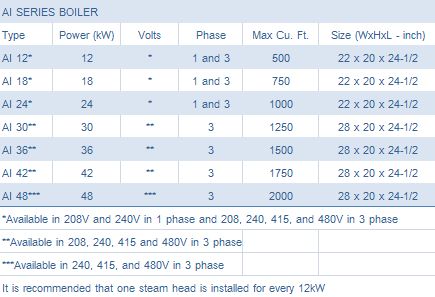

AI Series boilers are available for the following electrical specifications.
- 240V / 1 Phase. - 208V / 3 Phase. - 208V / 1 Phase. - 240V / 3 Phase. - 480V / 3 Phase. - 415V / 3 Phase (Export)
Standard Features:
• ASME certified low-pressure vessel.
• UL Listed.
• All steel construction with powder coat exterior, brass fittings
• ASME certified low-pressure vessel.
• UL Listed.
• All steel construction with powder coat exterior, brass fittings
and stainless steel feet to prevent corrosion.
• One or two room operation with each room controlled
• One or two room operation with each room controlled
individually by separate low-voltage on/off controls.
• External control system includes indicator light to show when
• External control system includes indicator light to show when
boiler is on.
• Room "over-temperature shut down" turns boiler elements off
• Room "over-temperature shut down" turns boiler elements off
and blinks indicators to show alarm.
• Two or three wire alarm circuit switching provides for remote
• Two or three wire alarm circuit switching provides for remote
monitoring.
Multiple safety features including:
• Water level sight glass.
• Three-level water sensing system with low water cutoff.
• High pressure cut-out on all boilers.
• Designed for easy serviceability.
• Simple service access.
• Indicator lights with integral diagnostics.
• Water level sight glass.
• Three-level water sensing system with low water cutoff.
• High pressure cut-out on all boilers.
• Designed for easy serviceability.
• Simple service access.
• Indicator lights with integral diagnostics.
Controls & Options
• IT1 Thermostat for single room installation. Remote or boiler mounted. Required with each boiler.
• IT2 Thermostat for two room installation. Remote or boiler mounted.
• ADI CoolFlush drain and flush system automatically performs
recommended daily draining and flushing of the boiler tank to
reduce build-up of solids such as scale and sludge. Uses a
computer controlled drain cycle to add and drain water in steps,
rinsing the tank and draining water at or below 140 F.
• IDS In-Room "Refresh" control for a quick burst of steam
delivered on demand.
• I60 60 Minute Timer to control steam flow in steam rooms with
intermittant use.
• I24/7 7 Day Time Clock (Digital time clock also available.)
• I24/1 24 Hour Time Clock
