Printer-friendly Version Steam Generator Sizing & Rough-In Guide
| AK-AX Model | Steam Room cu ft [cu m] |
1 Phase | 3 Phase | Shipping Weight lb (kg) |
|||||
|---|---|---|---|---|---|---|---|---|---|
| Min. | MAX. | VAC | Watts | Amps | Breaker | Amps | Breaker | ||
| 4.5 | 60 [1,70] | 90 [2,55] | 240 | 4500 | 19 | 30 | 11 | 15 | 35 [16] |
| 4.5 | 60 [1,70] | 90 [2,55] | 208 | 4500 | 22 | 30 | 12 | 20 | 35 [16] |
| 6.0 | 80 [2,27] | 150 [4,25] | 240 | 6000 | 25 | 40 | 14 | 20 | 35 [16] |
| 6.0 | 80 [2,27] | 150 [4,25] | 208 | 6000 | 29 | 40 | 17 | 30 | 35 [16] |
| 7.5 | 100 [2,83] | 200 [5,66] | 240 | 7500 | 31 | 40 | 18 | 30 | 35 [16] |
| 7.5 | 100 [2,83] | 200 [5,66] | 208 | 7510 | 36 | 50 | 21 | 30 | 35 [16] |
| 9.0 | 150 [4,25] | 300 [8,50] | 240 | 9000 | 38 | 50 | 22 | 30 | 35 [16] |
| 9.0 | 150 [4,25] | 300 [8,50] | 208 | 9000 | 43 | 60 | 25 | 40 | 35 [16] |
| 11 | 200 [5,66] | 400 [11,3] | 240 | 11000 | 46 | 60 | 26 | 40 | 35 [16] |
| 11 | 200 [5,66] | 400 [11,3] | 208 | 11250 | 18 & 36 | 30 & 50 | 31 | 40 | 35 [16] |
| 14 | 350 [9,91] | 550 [15,6] | 240 | 14000 | 21 & 38 | 30 & 60 | 34 | 50 | 35 [16] |
| 14 | 350 [9,91] | 550 [15,6] | 208 | 13750 | 24 & 42 | 30 & 60 | 38 | 50 | 35 [16] |
To calculate the generator size required, multiply the length x width x height and surface materials of the steam room. Maximum recommended ceiling height is 8 feet [2,4 m]. Note: Ceiling Heights over 8 feet [2,4 m] may result in temperatures too hot near the ceiling or uncomfortably cool in the seating area.
For rooms made of natural stone (such as Marble, Granite, Travertine, Slate, and Porcelain tile), multiply the cubic volume by 1.75 (stone requires more power to heat)
For rooms exceeding 550 cubic feet [15,6 cu m], generators may be ganged together to achieve required capacity.
Each generator will require its own power source as described in the chart above.
Example:
Room size 750 cu ft [21,2 cu m], power available 240V 1 phase:
Use two 11kW generators.
Requires one 60A circuit for each 11kW steamer
(total of two circuits)
Example: Room size 925 cu ft [26,2 cu m], power available 240V 1 phase: Use one 11kW generator (requires one 60A circuit) plus one 14kW generator (requires 2 circuits, one 30A + one 50A)
One control required, regardless of quantity of generators. Additional controls may be connected
AK steamers are compatible with Amerec’s K60 and KT60 time and
temperature controls.
AX steamers are compatible with Amerec’s Elite Touch Screen full
function control or the Pure 2.0 time and temperature control.
Recommended: Provide unions on all plumbing fitting lines for easier service disconnection.
Mount in dry, well ventilated area, not exposed to freezing temperatures.
Mount generator level, on the wall or on its base.
Provide adequate access for potential service needs.

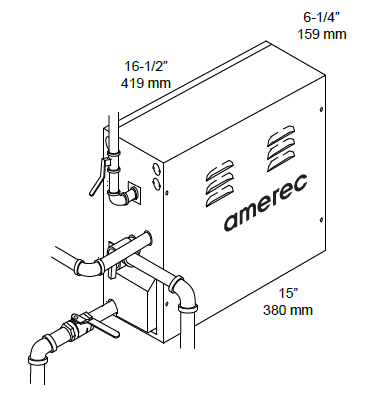

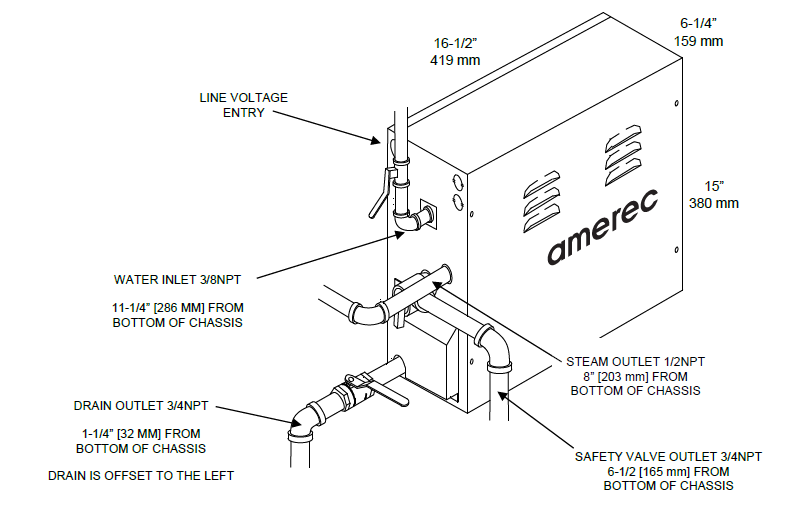

Run 3/8" copper cold water line. Install shut off valve but do not use a saddle valve.
Run 1/2" copper steam line, not to exceed 20 ft (6 m) in length. Slope pipe to avoid condensation build up. Do not create traps! Terminate pipe In steam room 18” (460 mm) above finished floor, or 12” (305 mm) above rim of the tub if in a bathtub enclosure.
Run 3/4” (19 mm) copper drain line, sloping pipe to gravity flow drain. Do not terminate into the steam room!
Run 3/4" (19 mm) copper pressure relief line and terminate in accordance with local and national codes.
Follow local plumbing and electrical codes.
Please refer to AK or AX installation instructions for further details.
