STEAM GENERATOR CONTROL KIT
SPECIFICATION SHEET

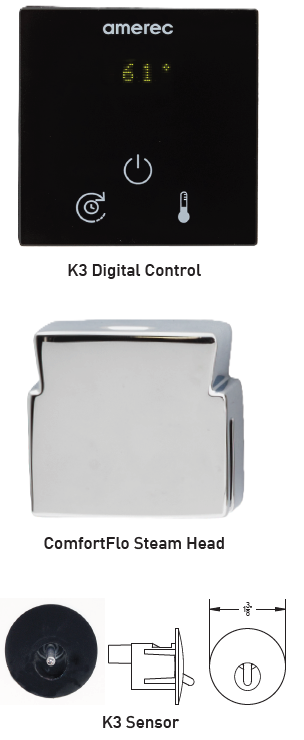

MODEL: K3 3-BUTTON DIGITAL CONTROL
FOR USE WITH AK STEAM GENERATOR
Features
- 3-button digital control with on/off temperature and time duration setting.
- Display alternates between ambient room temperature and time remaining.
- Features separate, remote mounted temperature sensor.
- 2 5/8”w x 2 5/8”h x 5/8”d
- Surface mounted, inside or outside of steam room.
Installation
- Control mounts either inside or outside steam room.
- Control housing to be mounted in 2 3/8” diameter hole in wall.
- Temperature sensor mounts in 7/8” diameter hole located 6” down from 84” ceiling.
- Control and sensor cables connect to PCA inside steam generator.
| Item Number | ||
|---|---|---|
| K3 Control Kit-CP | Chrome | 9114-121 |
| K3 Control Kit-PN | Polished Nickel | 9114-125 |
| K3 Control Kit-BN | Brushed Nickel | 9114-126 |
| K3 Control Kit-ORB | Oil Rubbed Bronze | 9114-127 |
| A3 Control Kit-BB | Brushed Bronze | 9114-128 |
| A3 Control Kit-MB | Matte Black | 9114-129 |
May be used with additional K3 or K4 as a second control.
Not intended for use as installation instructions. Refer to specific generator model installation instructions for further detail.
